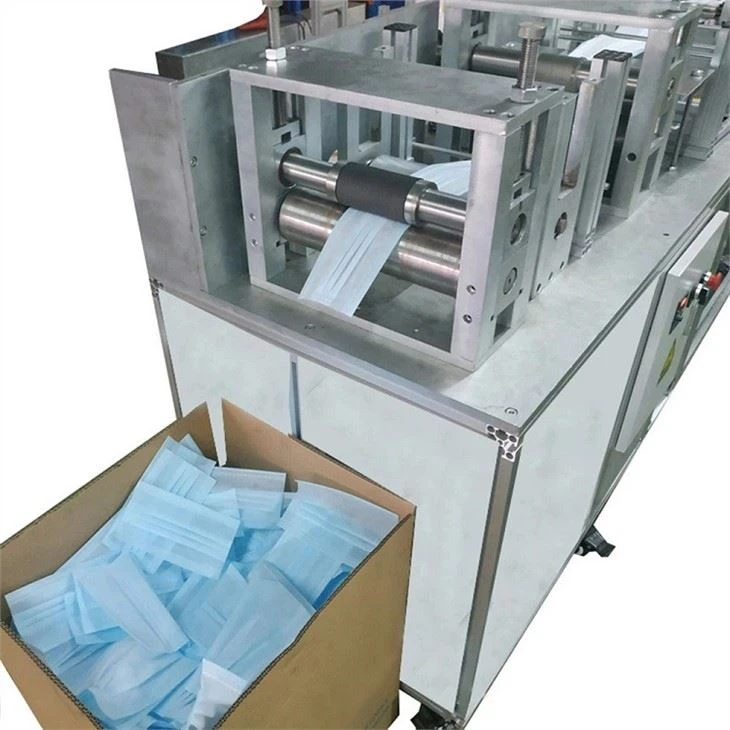

Non Woven Mask Blank Making Machine
Non Woven Mask Blank Making Machine is composed of one set of feeding machine plus a plain face mask making machine. When you load 3 rolls of non-woven fabric the entire roll of fabric will automatically unroll.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Non Woven Mask Blank Making Machine is composed of one set of feeding machine plus a plain face mask making machine. When you load 3 rolls of non-woven fabric the entire roll of fabric will automatically unroll. At the same time the fabric will be automatically folded and wrapped. Nose bridge rolls are unrolled by traction then cut and import into the hemmed fabric. Both sides are welded to seal by ultrasonic welding and then through the ultrasonic side seal. It is cut and shaped by a cutter. The output of this machine is around 150-180pcs/min.
Features
1. The size of the mask blank is 175(L)*80-100(W)mm, other specifications according to customers;
2. The whole machine adopts aluminum alloy structure which is more beautiful and sturdy.
3. High production speed up to 180pcs/min.
4. High Stability
Non Woven Mask Blank Making Machine | |
Power Source | 220V/380V 50-60HZ |
Inout Power | 3KW |
Output Frequency | 18KHZ |
Working Speed | 150-180 Pcs/min |
Mask Size | 175*(80-100)MM |
Nonwoven Layers | 1-4 Layers |
Nonwoven Material | 10-20 GSM |
Dimension | 3800*900*1800MM |
Weight | 500KG |
