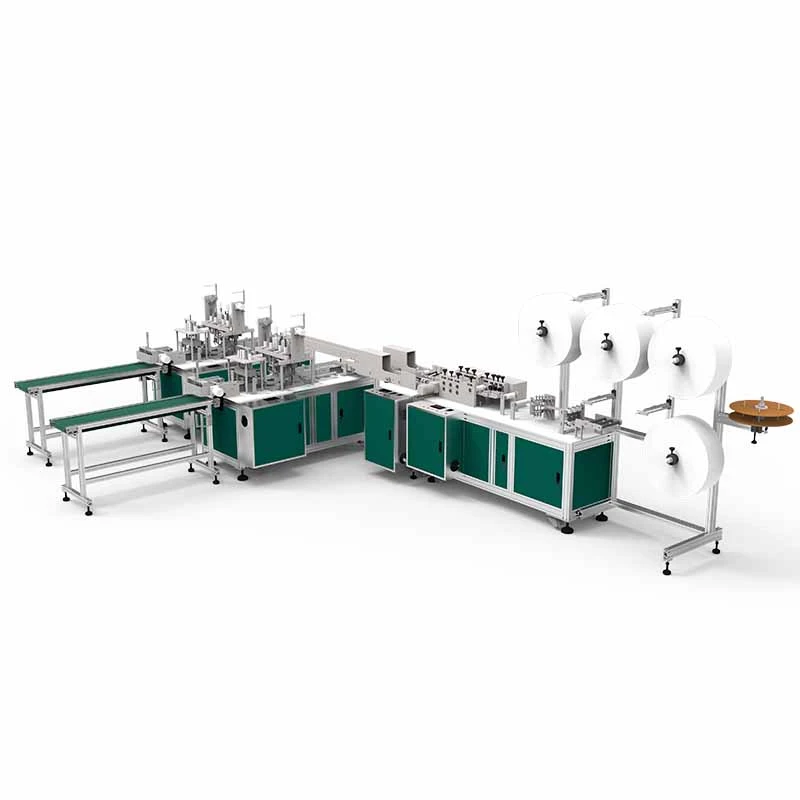

Fully Auto 3 Ply Medical Mask Making Machine
Fully Auto 3 Ply Medical Mask Making Machine is equipped with two ear belt spot welding machines which are controlled by PLC and the driving motor is servo motor.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Fully Auto 3 Ply Medical Mask Making Machine is equipped with two ear belt spot welding machines which are controlled by PLC and the driving motor is servo motor. So the welding speed is fast and stable. And the qualified rate of the mask is over 98%. About the stack system, it is a automatic counting stack equipment with servo motor, so customer can customize the number of stacks.
It is a full-automatic plane mask forming machine. It can complete the automatic feeding, moulding, folding and ear welding of the mask. It will need 1 or 2 professional worker to operate the machine.
Fully Automatic Disposable Mask Making Machine 1+2 | |
Capacity | 100-120 PCS/MIN |
Power | 10kW |
Voltage | 220V-50/60HZ |
Air Pressure | 0.6Mpa/0.8Mpa |
Weight | ≤1500kg |
Control Panel | PLC |
Welding way | Ultrasonic Welding & Forming |
Mask Size | 17.5*9.5CM |
Dimension(L*W*H) | 6800mm*3500mm*2000mm |
Operating Environment | Temperature 10-35°C, humidity 5%-35% HR, no flammable, corrosive gas, no dust |
