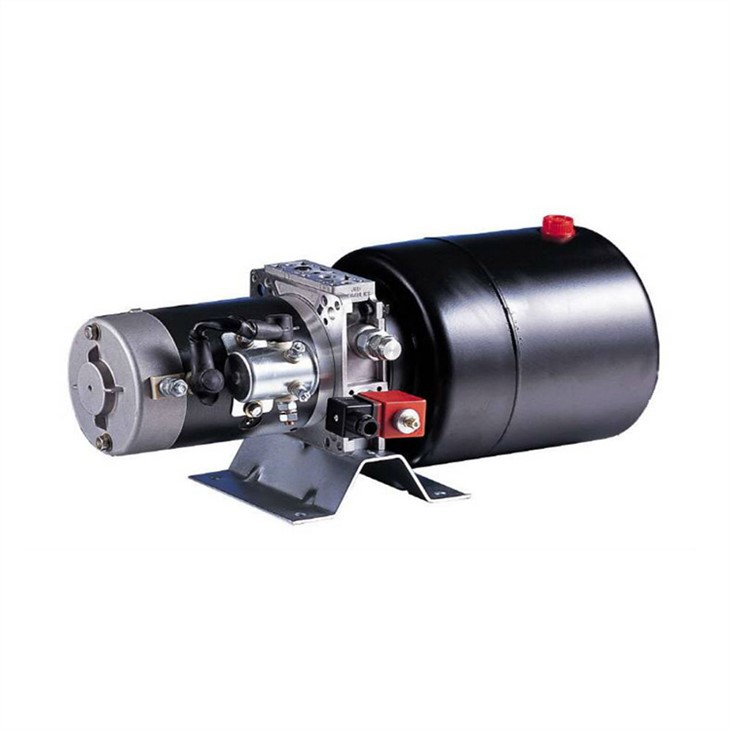

Dock Leveler Power Pack
Dock Leveler Power Pack is made up of AC motor, high pressure gear pump, multi manifold, oil tank, hydraulic valve etc. This hydraulic power pack specially designed for dock leveler with full hydraulic control.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

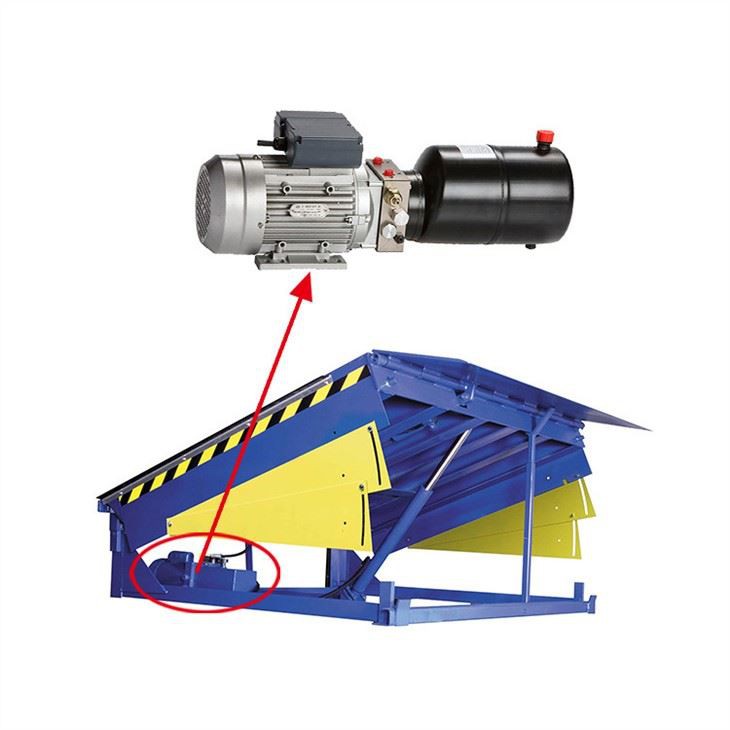

Dock Leveler Power Pack is made up of AC motor, high pressure gear pump, multi manifold, oil tank, hydraulic valve etc. This hydraulic power pack specially designed for dock leveler with full hydraulic control. It is used to provide hydraulic energy to dock levelers. This power pack can only work intermittently and repeatedly. It can control two single acting cylinder.
The product should be well protected from moisture and must be treated with care during storage, transportation and operation. Make sure all the hydraulic parts cleaned before mounting the power unit.
Dock Leveler Power Pack | |||
Model | WSD-DCQ-001 | WSD-DCQ-002 | WSD-DCQ-003 |
Difference | Without solenoid valve | With normal closed solenoid valve | With normal open solenoid valve |
Voltage | 110V/220V/380V/415V | ||
Power | 0.75KW/1.1KW/1.5KW | ||
Motor speed | 1440RPM | ||
Pump output | 2.5ml/r | ||
System prussure | 18Mpa | ||
Oil tank capacity | 5L | ||
Out put thread | G1/4 | ||
